ZCFFSAI-8C Fiber Fusion Splicer: Precision Engineered for High-Speed Fiber Networks
Elevate your fiber optic installations with the ZCFFSAI-8C Fiber Fusion Splicer, a state-of-the-art tool designed for speed, accuracy, and reliability in demanding environments. Perfect for FTTH, CATV, and telecom projects, this splicer combines advanced alignment technology with rugged field performance.
Key Features
- Ultra-Precise Core/Cladding Alignment
- 6-Motor System: Achieves 0.35μm alignment accuracy for minimal splice loss (0.02dB SM / 0.01dB MM).
- Auto-Focus & Dual-Axis Display: 320x magnification (single-axis) or 160x (dual-axis) for real-time visual verification.
- Blazing-Fast Splicing Performance
- 6-Second Splicing Cycle: Optimized for high-volume projects without compromising quality.
- Adaptive Heating Mode: Default 15-second heat shrink, customizable for environmental conditions (humidity, temperature).
- Versatile Fiber Compatibility
- Supports single-mode (G.652/G.657), multi-mode (G.651), bare fiber, drop cables, and jumpers.
- Handles cladding diameters 80–150μm and coating diameters up to 1000μm.
- Field-Ready Durability
- 7800mAh Lithium Battery: Powers 260+ splicing/heating cycles on a single charge.
- Robust IP54 Protection: Dustproof, waterproof, and shock-resistant for harsh environments (-15°C to +50°C).
- Smart Workflow Integration
- Bluetooth 4.2 & Mobile App: Remote diagnostics, firmware updates, and splice data synchronization.
- Unlimited Storage: 1000 on-device splice records + cloud backup for audit trails.
Technical Specifications
| Category | Details |
| Fiber Holder | Universal 3-in-1 clamp (no tool changes for SM/MM/ribbon fibers) |
| Display | 5″ TFT touchscreen with intuitive UI |
| Heating Shrink Tubes | Compatible with 25mm, 40mm, 50mm, and 60mm sleeves |
| Tensile Test | 2N standard validation for splice durability |
| Power Supply | 100–240V AC input or portable DC mode |
| Weight | 9kg (lightweight for field portability) |
Applications
- FTTH/FTTx Deployments
- CATV Network Upgrades
- Data Center Interconnects
- Industrial IoT & 5G Backhaul
Why Choose ZCFFSAI-8C?
✅ 5-Year Warranty: Industry-leading support for peace of mind 1.
✅ Ergonomic Design: Compact and lightweight for all-day fieldwork.
✅ Future-Proof: Regular firmware upgrades via Bluetooth ensure cutting-edge performance.
Ideal For: Telecom technicians, network engineers, and contractors seeking a balance of precision, speed, and ruggedness.
Bulk Orders & Custom Solutions Available – for OEM/ODM inquiries.
Specifications subject to minor updates. Refer to the official user manual for operational guidelines.
Intelligent Manufacturing
An effective balance between quality and cost-effectiveness
3 in 1fiber holder
SM, MM, bare fiber, pigtail, Drop cable, multi-fiber cable
7800mAh lithium battery
Dual charging path
Even if a fault occurs, another channel can be used for charging
Accessories in the tool box

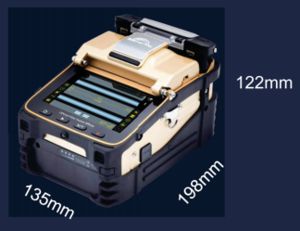

Size and weight
Machine weight
2.1kg (with battery)
1.68kg (without battery)
Toolkit weight
6.95kg (including machine and accessories)
Total weight
8.20kg
|
|
ZCFFSAI-8C Fiber Fusion Splicer Images
|
